Insulation

Insulating your building is always a great option. Having insulation helps with temperature control and condensation inside of your metal building. Our insulation technology is meant specifically for metal buildings. It does not look or feel like traditional insulation inside of your house, but it works just as good. Our Insulation is made to go between the frame of the building and panel for a secure fit.

Choose the insulation that is right for you!

rFOIL-2500-Series-Metal-Building-Brochur

Double Bubble

Double Bubble insulation is a layer of polyethylene bubbles bonded to and sandwiched between a radiant barrier metalized film surface and a white polyethylene sheet.

It is specifically designed to reduce radiant heat gain/loss in a metal buildings while also helping control condensation by providing an airtight thermal break while reducing the amount of heat transfer.

Double Bubble Benefits

Blocks 96% of Radiant Heat Transfer
Provides Continuous Thermal Break
Will Not Absorb Water or Vapor
Prevents Interior Condensation
Class 1/ Class A Fire Rates
Puncture and Tear Resistant
Unaffected by Humidity
Will NOT Promote Mold and Mildew
Safe, Non-Toxic and Non-Carcinogenic
UV Resistant
Improves Interior Comfort
Does Not Harbor Moisture or Mold
Clean, Safe, No Itch Material

The Double Bubble Insulation has a white interior facing option which brightens the interior of the building while having an attractive appearance and is easy to clean.

rFOIL-2500-Series-Metal-Building-Brochure-Y22-12g-web.pdf (2).png

R- 14.75

With R 14.75 you get Insulation + Radiant Barrier + Vapor Barrier+ Air Barrier All in One product.

You get 0.20" closed cell polyethylene foam with reflective reinforced foil on one side and plastic white finish film on the other side. This product comes with aluminum on both sides that reflects the heat radiation. R-14.75 is made with 100% recyclable virgin raw materials.

R-14.75 Benefits

R-value is unaffected by humidity
Prevents condensation
Prevents 97% of radiant heat transfer
Vapor Barrier
Elastic
UV Resistance
Does NOT promote mold or mildew
Does NOT provide for nesting of rodents, bugs or birds
Seals around nails (no leaks)
Keeps in shape overtime (doesn't collapse)
Rippled Foil Surface Increases airflow
5mm ( 0.2 Inch ) Thick
Thermal Insulation
Class A Class 1 Fire Rated
Maintains its thickness overtime
Hydrophobic Insulation

The R-14.75 Insulation has a white interior facing option which brightens the interior of the building while having an attractive appearance and is easy to clean.

R-17

With R-17 Insulation You get one solution for Heat, Condensation, Cold and Airflow. It's perfect for maximum temperature control while helping with condensation and mold prevention. This product has adhesive running throughout the whole role which is great for sealing the seams between the overlap of the material for a cleaner look.

R-17 Benefits

Improved tearing resistance
Flame Spread 0
R Value Is unaffected by humidity
Prevents condensation
Prevents 97% of radiant heat transfer
Vapor Barrier
Core sealed on both sides with flange
Elastic
Does not promote mold or mildew
Does not provide for nesting of rodents, bugs or bids
Seals around screws (no leak)
ICC-ES Recognized
Reflective reinformed foil on each side of 5mm (0.2 Inch) closed-cell polyethylene foam center
Keeps its shape over time(does not collapse)
Rippled surface increases air flow
Resistance to Growth of Fungi Like Aspergillus Niger, Aspergillus Avus, Aspergillus Versicolor, Penicillium Funciculosum, Chaetomium Globosum
Aluminum on both sides that reflects the heat radiation thermal Insulation
Hydrophobic Insulation
Class A Class 1 Fire Rating
Maintains its thickness over time

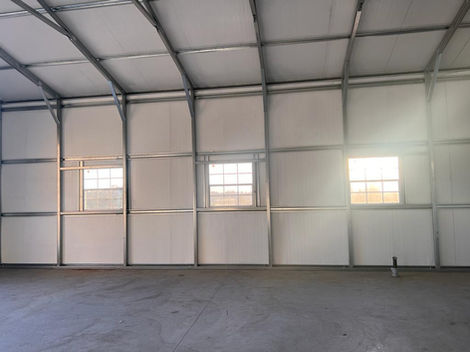

Insulation On A Metal Building

Here are some pictures of insulation on a metal building. You have the option to insulate the roof only, the walls only or the full building. We make sure to make your building fully customizable to meet your needs.
